Product

Product Name:TCK2000 Baking Profiler
Prouduct Details:

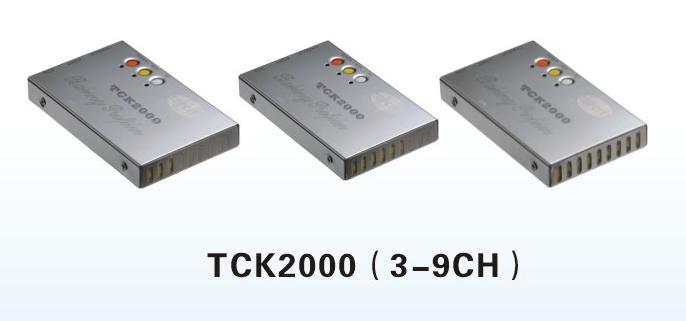

TCK2000 3-9 CH

High Temperature Baking Profiler

000

Main Technical Specifications:

1、Thermocouple:  3--9 CH  K-type thermocouple
2、Sampling interval:0.25sec---600sec Set with software
3、Record data:80000 point/channel, Can record 20 sets profile
4、Resolution: 0.1℃
5、Temperature measuring range: 0—1000℃
6、Temperature measuring accuracy: ±1.0℃
7、Total power: ≤100mW
8、Operating voltage:3.6VDC, rechargeable battery
9、Dimensions: 135(L)×80(W)×19(H)mm
10、Insulation box Dimensions:300(L)×150(W)×110(H)mm
                                                   185(L)×125(W)×60(H)mm
11、Start  Mode : Manual, specified time or specified temperature
12、Record mode: Monitor/Record
13、Connection mode:RS232/USB
14、Software version: Baking-Profiling 1.1

Standard Composition:
1. Thermal profiler    2. Insulation box
3. Temperature test line   4. Data download line
5. Charger     6. Hi-temp adhesive tape
7. Software CD   8. “+” screwdriver   9. Tweezers
10. Insulated gloves   11. Hi-temp tine wire
12. Scissors       13. Instrument box
14. User Manual   15. Acceptance Certificate

Software Setup and data analysis:

Test point information setup
Oven information setup
Peak Temp & Time of Peak Temp
Times of over top the Temp & Time of arrive Temp
Times of between Temp
Slope of between Temp
Profile Marker & Come Into Operation
