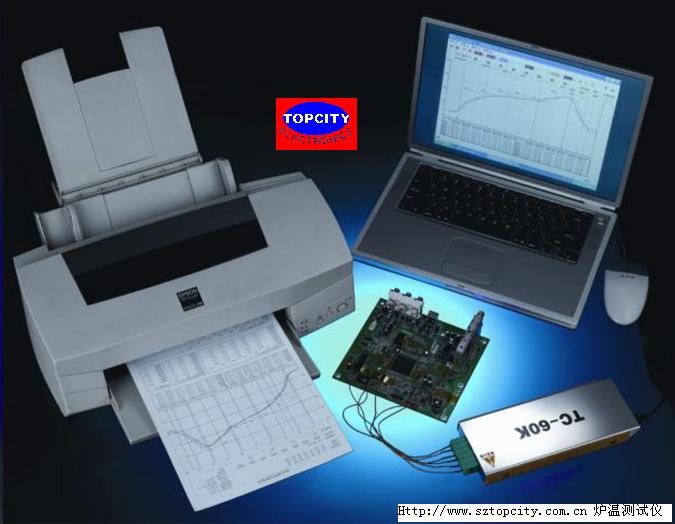

Product Name:TC-60Ks Thermal Profiler
Prouduct Details:

·Model:TC-60Ks
·Brand:TOPCITY
·Habitat:TOPCITY

Main Technical Specifications:

1、Thermocouple:   K-type thermocouple
2、Sampling interval:0.5sec
3、Record data:2580 point/channel
4、Resolution: 0.1℃
5、Temperature measuring range: 0—400℃
6、Temperature measuring accuracy: ±1.0℃
7、Total power: ≤100mW
8、Operating voltage:3.6VDC, rechargeable battery
9、Dimensions: 220(L)×56(W)×20(H)mm
10、Insulation box Dimensions:252(L)×60(W)×30(H)mm
11、Connection mode: RS-232
12、Software version: V3.30

Standard Composition:

1. Thermal profiler    2. Insulation box
3. Temperature test line   4. Data download line
5. Charger     6. Hi-temp adhesive tape
7. Software CD   8. “+” screwdriver   9. Tweezers
10. Insulated gloves   11. Hi-temp tine wire
12. Scissors       13. Instrument box
14. User Manual   15. Acceptance Certificate

Software Setup and data analysis:

 Product information setup
 Machine parameter setup
 Peak Temp,Times of overtop the Temp
 Times of between Temp(Reflow)
 Slope of between Temp(Reflow)
 Slope of between Times(Wave)
 Horizontal line and Vertical line setting
